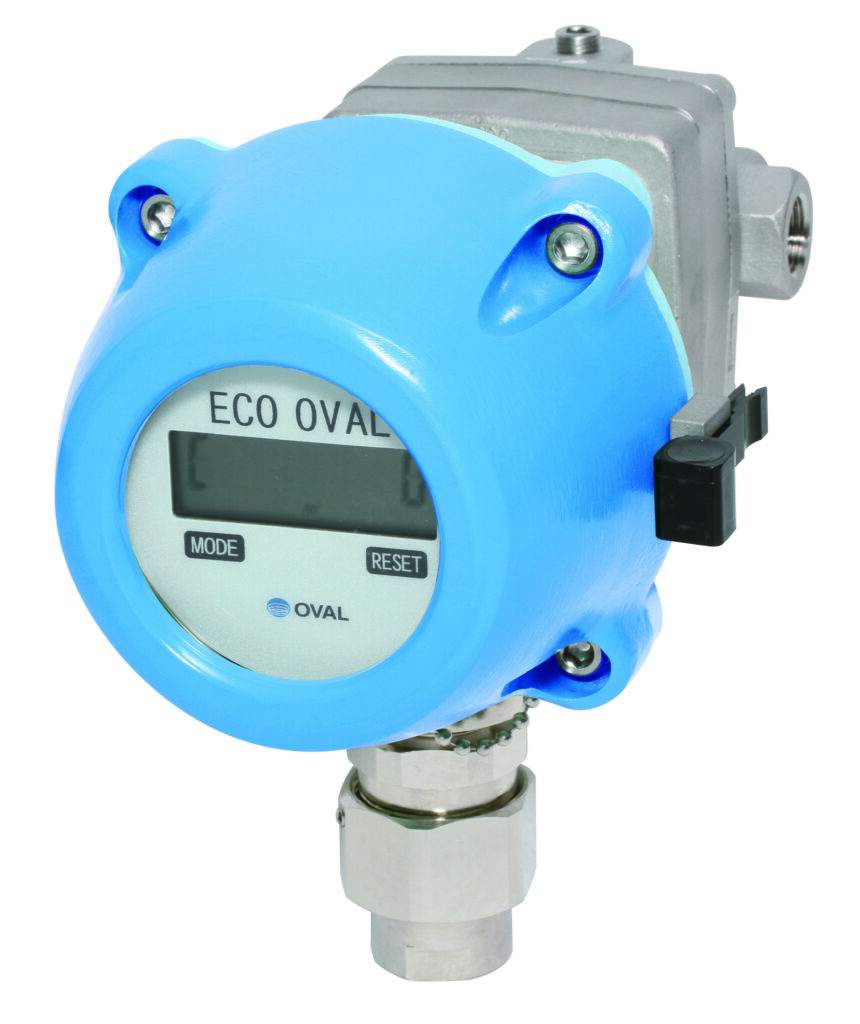

ECO OVAL ( LGV, LGD )

Format:LGV, LGD

Liquid

Gas

Steam

エコオーバル LGV、LGDシリーズ_容積流量計

エコオーバル LGV、LGDシリーズ_容積流量計

An inexpensive positive displacement flowmeter with explosionproof construction while supporting wide range of fluids from water, oil to general chemical liquids.

  • explosionproof
  • battery powered model
Features
Product Specifications
Document

Features

1. Accurate flowmetering is attributable to the inherent accuracy of oval flowmeter.
2. The register contains an LCD counter with multiple functions. View angle is freely abjustable.[Grand total flow, instantaneous flowrate (per-hour or perminute), and resettable total flow selectable]
3. The LCD changes display modes with MODE switch at left of the register.
4. Small wetted parts count contributes to long life.
5. Flow output signal is compatible with a wide choice of remote receiving instruments for control, adjustment, record, and more applications.

Applicable fluid

water

gasoline

kerosene

light oil

heavy oil

general chemical liquid

other

Major specifications

Model For general chemical liquids (LGV、LGD)
Nominal size 8, 10, 20, 25, 40, 50mm
Connection 8, 10 mm: Screw-mount
20 to 50mm: JIS 10K Flange
Flow range 12 to 20000L/h (6 types)*
Operating temp. range 0 to 120°C
Max. operating pressure 8,10mm:1.96MPa
20 to 50mm:1.19MPa
Accuracy Within ±0.5% of reading
Power supply DC-powered or battery-powered
Output Pulse
Configuration Explosionproof or non-explosionproof, IP66
Body material SCS14, SCS13 or equivalent
Applicable fluids General chemical liquids

*: 0.3 to 0.8 mPa·s in viscosity

Catalog

Specification

*You need to fill out the questionnaire to download documents.
