OVAL VORTEX FLOWMETER Standard type

Liquid

Gas

Steam

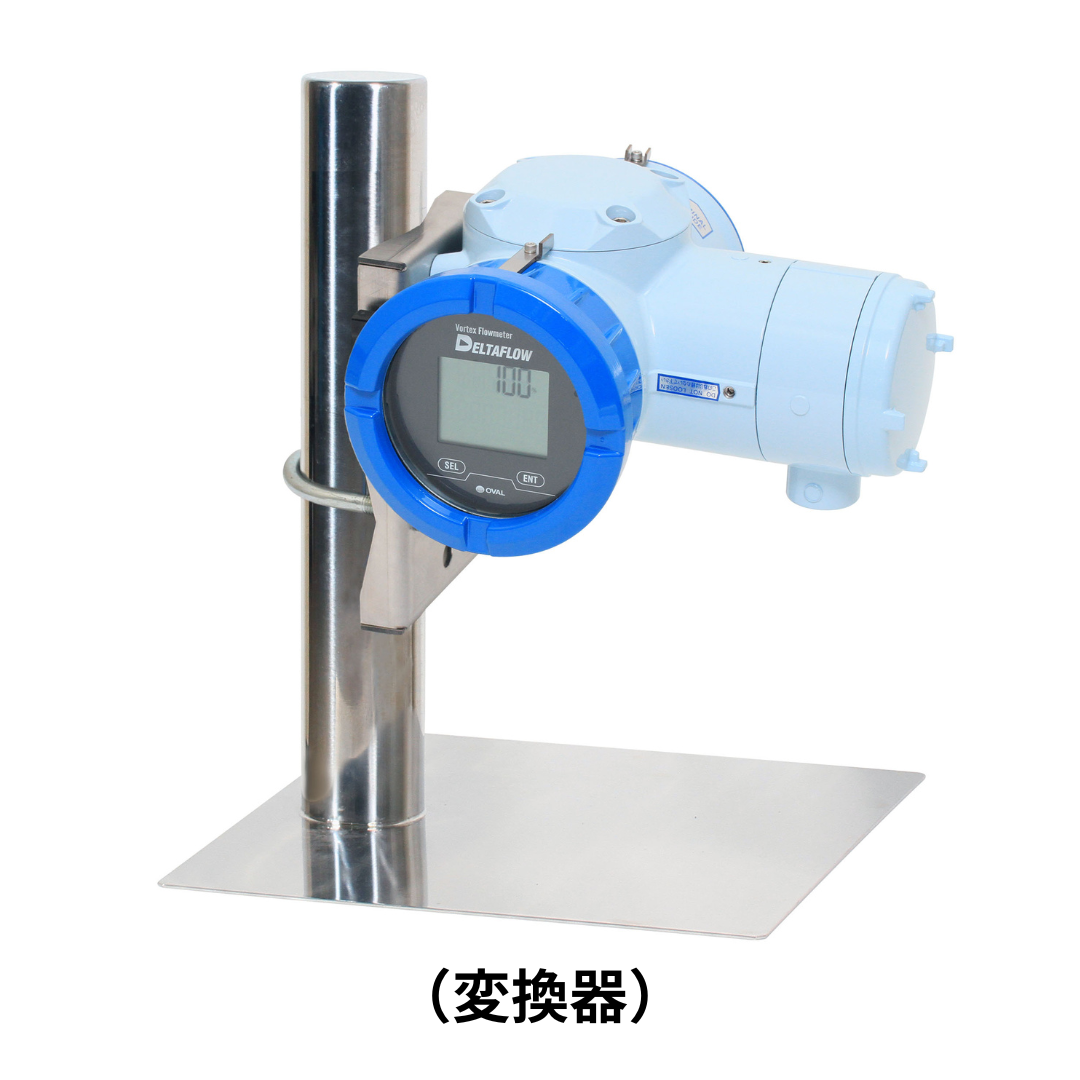

DELTAFLOW Type F(標準形)_渦流量計_01

DELTAFLOW Type F(標準形)_渦流量計_02

DELTAFLOW Type F(標準形)_渦流量計_01

DELTAFLOW Type F(標準形)_渦流量計_02

A thermistor sensor picks up the occurrence of vortex caused by the flow velocity change in the manner -- changes in thermistor temperature -- changes in resistance value -- a train of pulses proportional to the flow velocity and measures the flowrate.
Gas purge type is configured to be purged with a clean gas (room temperature) from an external source to the thermistor sensor. Therefore, the fluid to be measured does not touch the thermistor sensor, permitting accurate flow measurement of gases containing dust and mist, low-temperature gases, or others previously thought difficult to be measured.

Features
Product Specifications
Document

FEATURES

● Low-pressure loss thanks to the absence of moving parts
● High maintainability (Replaceable type is available.)
● High repeatability

GENERAL SPECIFICATIONS

Model Standard type
Nominal size Wafer type 20 to 150mm
Flange type 200 to 500mm
Applicable tube size
Flow range Gas (0.2 MPa air) 3 to 19000m3/h3/h(12 types)
Operating temp. range –20 to +130°C
(Depends on body material.)
Flange standard JIS 10, 20, 30K
ASME 150,300
Max. operating pressure Depends on flange standard.
Accuracy ±1% of reading or ±1% of full scale
Applicable fluids Gas
Power supply DC-powered
Configuration Explosionproof or non-explosionproof, IP65 or equivalent
Output Pulse

Catalog

Specification

*You need to fill out the questionnaire to download documents.

GBD110E-7

Standard/Gas Purge Type
