OVAL DENSITOMETER FOR GAS SERVICE

Liquid

Gas

Steam

Density is a unit of measurement indispensable for specifying the nature and composition of a material. Especially, in the process control system of various fields of industries, density measurement for gas and liquid is treated as important in the quality control and in measuring the flow of mass. OVAL densitometer for gas services using state-of-the-art frequency modulation technologies can satisfy various requirements for industrial measurements. It can also contribute to labor saving, safety operation, quality control, cost management, and pollution prevention as a new-age industrial instrument successfully achieving the measurement and control of density that has been regarded as a difficulty among process parameters.

Features
Product Specifications
Document

FEATURES

● High precision and excellent reproducibility
● High responsibility owing to the frequency-time measurement system in oscillation tube
● Extremely low effect of fluid temperature and no pressure effect
● Simple construction, high durability, and easy maintenance
● The natural frequency of the oscillation tube is high and there is no effect of external oscillation.
● Insertion type (DGI) densitometer can be removed without obstructing the fluid flow and no sampling system is required.
● By the installation of a safety instrument (Safety barrier) in the measurement circuit, intrinsically safe construction is attained.
● By the combination with vortex flowmeter, highly accurate mass measurement is available.

GENERAL SPECIFICATIONS

Model DGU/DGF/DGI*1
Materials Body SUS316L
Oscillation tube*2 Standard type: Ni-Span-C or equivalent
High temperature type: SUS630
Measurable range 0 to 60kg/ m3
Measurement range Operating temperature range Standard type: -20 to +75℃
High temp. type: -20 to +200℃*3
Operating pressure range Vacuum state to 9.81MPa
Ambient temperature range -20 to +60℃
Flow range 60L/min at the maximum
Power supply 10 to 20VDC max. 30mA
Configuration Explosionproof *3

*1: DGU: Screw-mount type, DGF: Flange type, DGI: Insertion type (3B min.)

*2: Ni-Span-C or equivalent: Standard material, SUS630: For high temperature or high corrosive gases (H2S, HCI, etc.)

*3: The fluid temperature range of explosion-proof specification becomes −20 to +170℃ for T3 and −20 to +120℃ for T4.

Specification

*You need to fill out the questionnaire to download documents.

GLJ010E-5

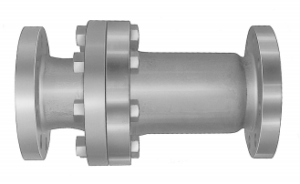

DGF Flange type, DGU screw-mount type, DGI insertion type
