Battery-powered
Clamp-on Type Ultrasonic Flowmeter for Liquid
The clamp-on system
eliminates the need for
construction work!
Since this flowmeter is attached to the outside
of a pipe to measure the flow rate,
there is no need to cut the pipe,
significantly reducing piping work costs.
Furthermore, there is no pressure loss due to the flowmeter,
so energy and cost losses can be cut.
The clamp-on system allows installation
without cutting the piping!
Generally, integrated clamp-on type ultrasonic flowmeters can measure
one or two diameters with one model,
but our UC-1 can measure eight diameters of pipes from 25A to 100A
(25, 32, 40, 50, 65, 80, 90 and 100A)with one model
by using its sensor position sliding mechanism.
The sensor slide position can be easily determined
through simple operation
The sensor slide position can be easily determined and displayed by inputting the piping specifications and fluid specifications.
❶ Input of piping specifications
Can be set from three patterns: standards, manual input, and simple setting.
Select from the standards
Input of piping specifications
Select
from the simple settings.
❷ Input of fluid specifications
Can be set from two options: preset or manual.
Select from
preset
Select from
manual input
❸ Sensor position determination
Slide the sensor to the displayed sensor position
and attach the flowmeter to the piping.

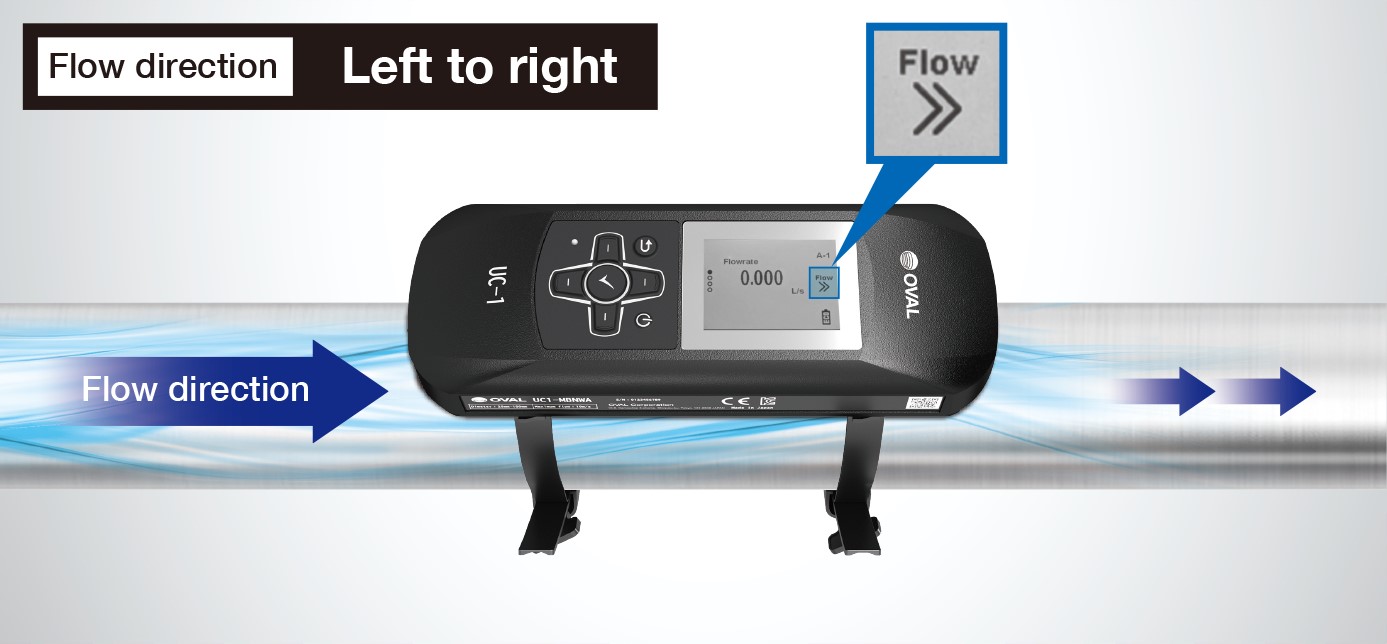

Flow direction
can be changed without removing the flowmeter
Flow direction can be easily changed
by operating the display screen without removing the flowmeter
even after it has been attached to the piping.
Measurement principle
(ultrasonic wave propagation time difference system)

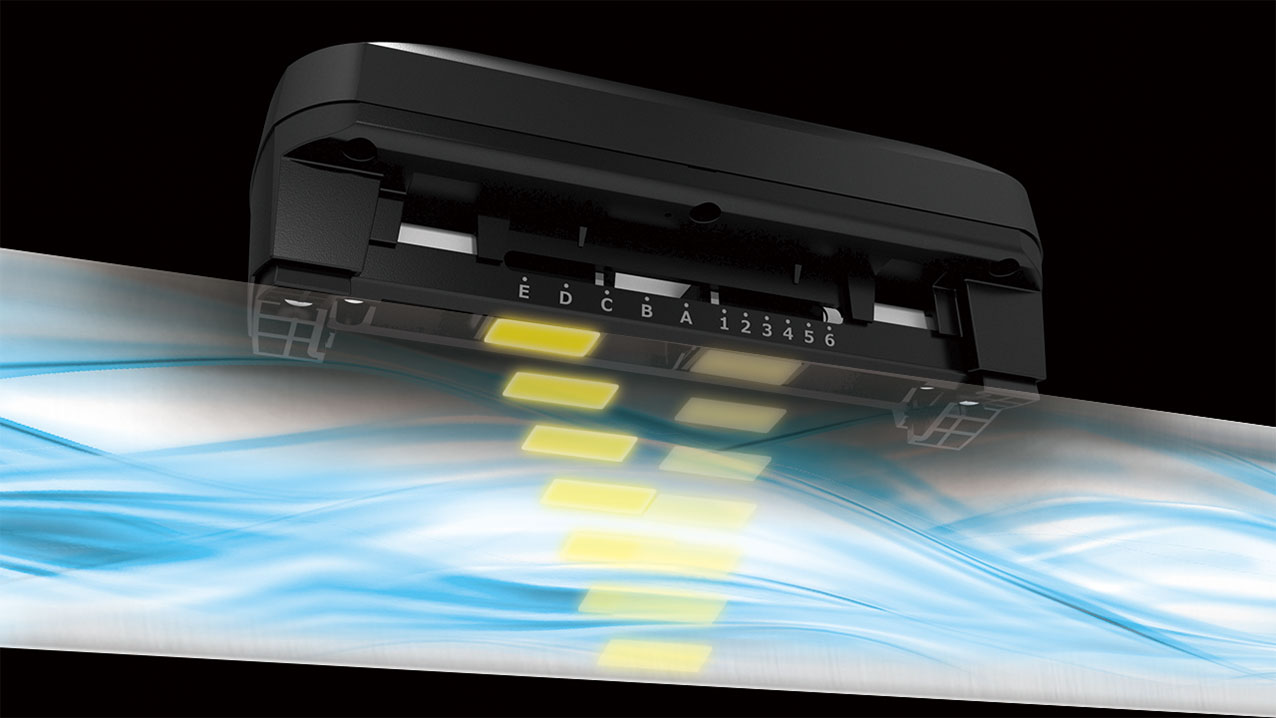

Ultrasonic waves are transmitted from the sensor.
The transmitted ultrasonic waves propagate slower when they go against the flow, and faster when they follow the flow.
Ultrasonic waves are transmitted and received alternately across the fluid in the pipe diagonally,
and the difference in the propagation times between two ultrasonic waves is converted to a flow rate.
Since ultrasonic waves propagate by penetrating materials,
the flow rate inside a pipe can be measured by attaching this flowmeter to the outside of the pipe.
Built-in battery enables long-term operation！
Built-in battery powered operation（battery life：10 years※）eliminates
the need for an external power supply,
reducing electrical work cost.
※Battery life varies depending on the operating environment.
Also, the product life is the same as the battery life.
Consumption of the built-in battery can be checked on the flowmeter display.
Flowmeter display

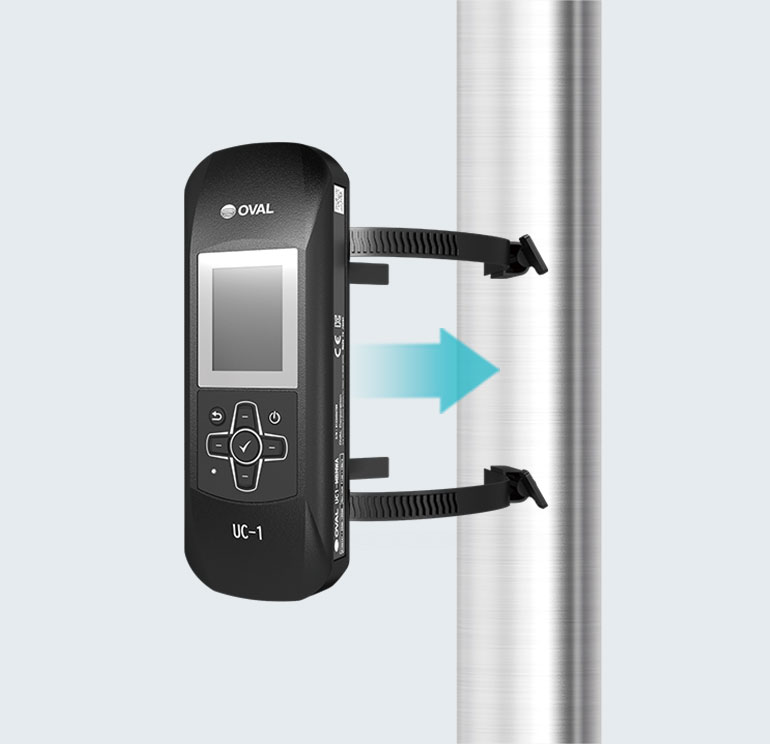

Hand-tightened resin bands
eliminate the need for installation tools such as screwdrivers！
Since no fixing metal fitting and grease are required,
anyone can easily attach the flowmeter
with only the flowmeter UC-1 and the accompanying attachment bands.
Since the bands are made of resin, there is no risk of injury such as cutting your hand.
General metal bands can also be used.
▶︎
▼
Hand-tightened
resin bands
